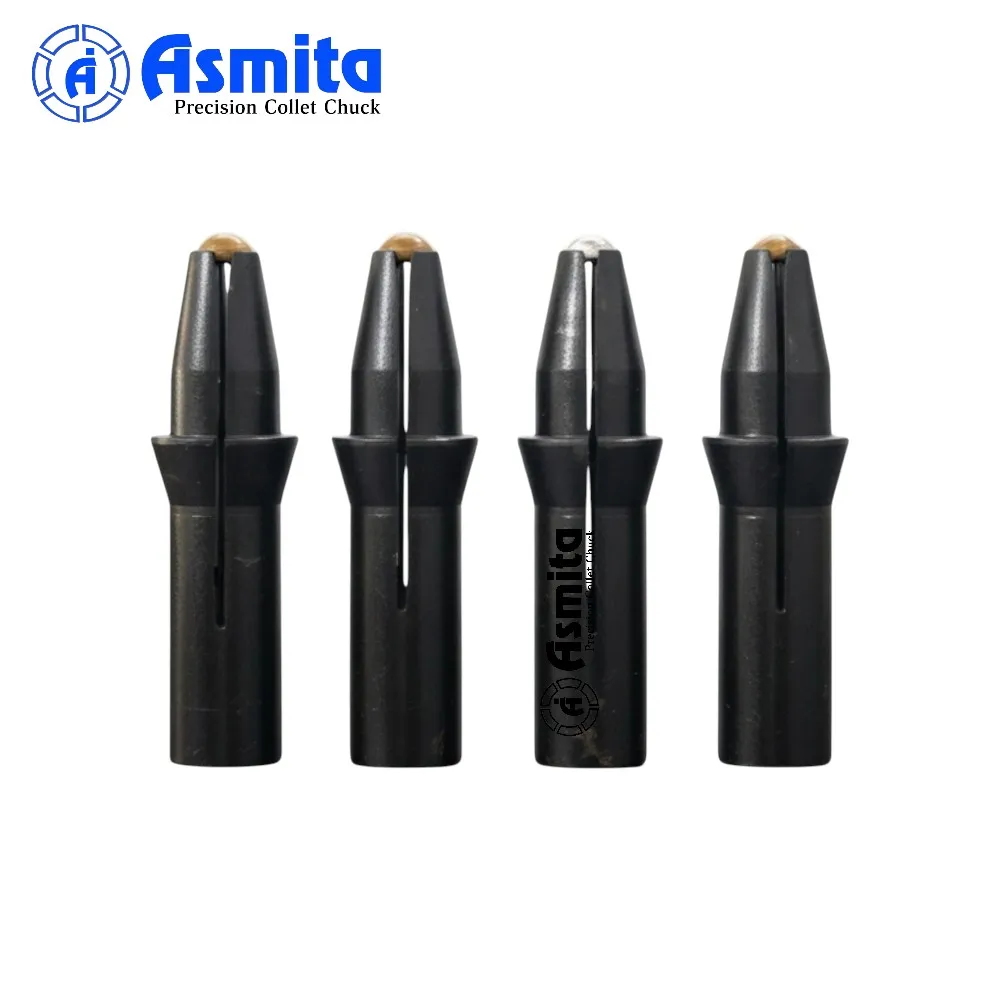

A Bati Jewellery Collet is a precision workholding collet used in jewellery lathes and hand-operated machines to securely hold gold, silver, and delicate jewellery components. It provides a firm, accurate grip while preventing damage to soft precious metals during turning, shaping, drilling, and polishing operations.
A Bati Jewellery Collet is a small, precision work-holding collet used in jewellery lathes and hand-operated machines to hold gold, silver, and delicate jewellery parts securely during turning, shaping, drilling, and polishing.
It is designed to provide firm grip without damaging soft precious metals.
KEY FEATURES
• Gentle & secure grip for soft metals
• High concentricity for fine finishing
• Compact size for miniature components
• Easy tightening & quick part change
• Suitable for traditional & modern jewellery lathes
BATI JEWELLERY COLLET – STANDARD SIZE RANGE
|
Parameter |
Typical Range |
|
Holding Capacity |
3mm – 16 mm |
|
Outer Diameter (OD) |
10 – 25 mm |
|
Length (L) |
25 – 50 mm |
|
Grip Type |
External gripping |
|
Material |
Spring Steel / Brass |
|
Accuracy |
≤ 0.02 mm |
|
Operation |
Manual /AUTO tightening |
Exact dimensions are often custom-made based on jewellery machine and job size.
CONSTRUCTION DETAILS
• Material: Spring Steel / Brass (non-marking option)
• Slots: Fine precision slits for uniform grip
• Finish: Smooth bore to avoid scratches
• Design: Lightweight & balanced
TYPES OF BATI JEWELLERY COLLETS
• Round bati collet
• Step bati collet
• Soft (brass) bati collet
• Custom profile collet (ring, bead, cap shapes)
APPLICATIONS
• Gold & silver jewellery turning
• Beads, rings, caps & small ornaments
• Fine drilling & polishing work
• Traditional jewellery workshops
• Precision jewellery production units
SUPPLY OPTIONS
• Standard & custom sizes
• Steel or brass material
• Made as per machine or sample
• Small-lot & bulk supply available
Have questions about a specific product? Our team will help you find the right option for your needs — ensuring compatibility, quality, and value.
A Quick Change Rubber Collet is a soft, flexible workholding collet designed for rapid replacement and non-marking grip of delicate, finished, or thin-wall components. It is ideal for automation lines, inspection stations, grinding, polishing, and light machining applications where frequent size changes, speed, and surface protection are essential.
A Friction Collet is a specialized workholding collet that grips components using high-friction contact surfaces rather than relying only on elastic spring force. It is ideal for smooth, hardened, plated, or polished components that tend to slip in standard steel collets, and is widely used in CNC turning, grinding, automation, and mass production applications.
A Multi Bore Collet is a special-purpose workholding collet designed with two or more bores to clamp multiple identical components simultaneously in a single cycle. Commonly used in CNC lathes, SPM machines, transfer lines, and automation systems, it increases productivity, reduces cycle time, and is ideal for high-volume production of small components.
An MT Collet (Morse Taper Collet) is a tool-holding collet with a Morse taper shank used on drilling machines, milling machines, lathes, and radial drills. It securely holds straight-shank tools such as drills, reamers, end mills, and taps, providing good concentricity and rigid support for accurate machining.
An SDC Collet is a single-taper precision tool-holding collet designed to deliver strong gripping force with low runout. It is commonly used in CNC machining centers, drilling and tapping machines, and SPMs where high rigidity, repeatability, and accurate tool holding are required.
A Bearing Collet is a precision workholding collet designed to securely hold bearing components such as inner rings, outer rings, races, and assembled bearings during grinding, turning, inspection, and assembly operations. It provides uniform clamping, high concentricity, and distortion-free holding, ensuring bearing accuracy, performance, and long service life.
An F Series Collet is a heavy-duty workholding collet used on manual lathes, CNC lathes, and capstan or turret lathes. It provides strong gripping force, high rigidity, and reliable accuracy for medium to large diameter components, making it an ideal replacement for jaw chucks to achieve better precision and faster cycle times.
A W-Series Collet is a high-precision, draw-in type workholding collet commonly used on cylindrical grinders, tool and cutter grinding machines, milling fixtures, and inspection setups. It offers excellent concentricity, high rigidity, and repeatable accuracy, making it ideal for precision grinding and finishing operations.
