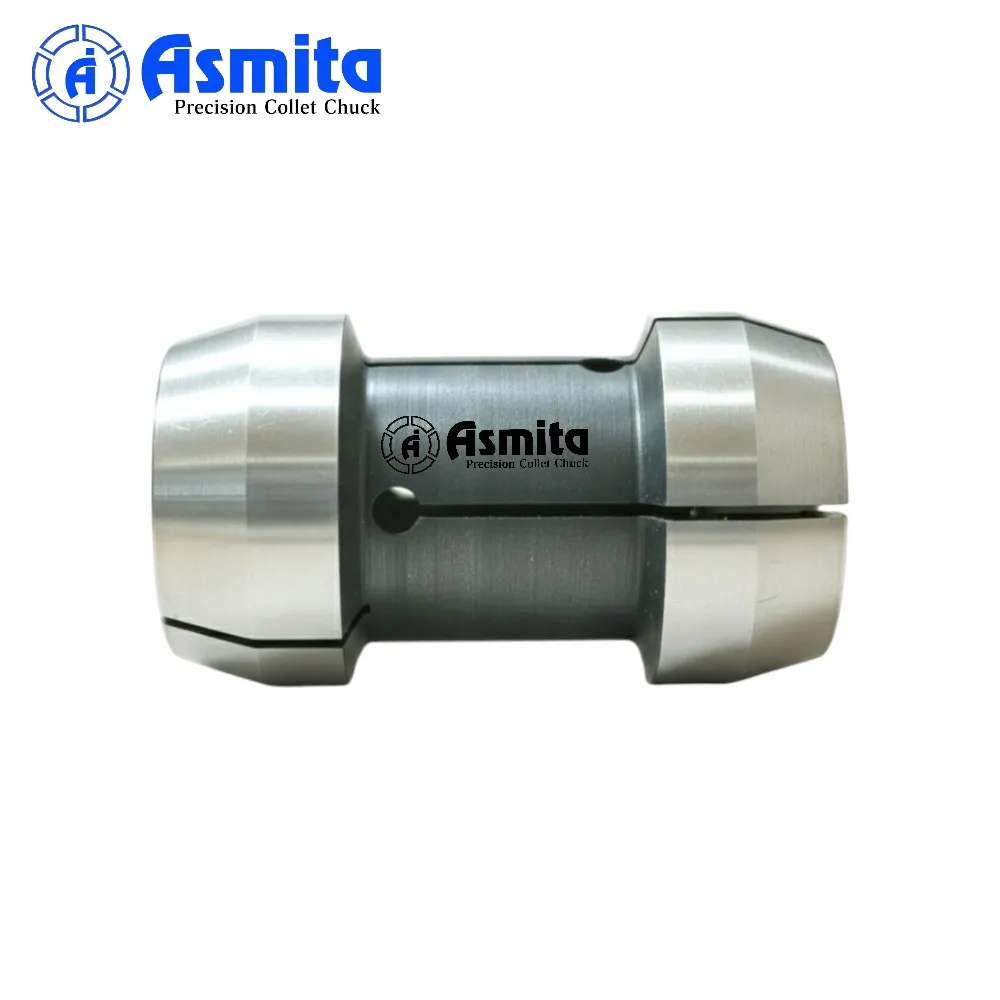

A Double Cone Collet is a precision collet featuring front and rear tapered surfaces that enable uniform radial clamping. This design delivers high concentricity, strong gripping force, and minimal runout, making it ideal for both tool holding and workholding applications where accuracy and stability are critical.
A Double Cone Collet is a precision collet with two tapered surfaces (front & rear cones) that provide uniform radial clamping.
This design ensures high concentricity, strong grip, and minimal runout, making it ideal for tool holding and work holding where accuracy is critical.
KEY FEATURES
Dual taper for balanced & uniform clamping
Excellent concentricity (low 10micron TIR)
High gripping force with less distortion
Long service life
Suitable for high-speed and precision operations
DOUBLE CONE COLLET – STANDARD DIMENSION TABLE
|
Collet Size |
Outer Dia (D) mm |
Length (L) mm |
Clamping Range (mm) |
Taper Angle |
|
DC-16 |
24 |
40 |
5– 16 |
8° + 8° |
|
DC-20 |
28 |
45 |
5 – 220 |
8° + 8° |
|
DC-28 |
43 |
50 |
5 – 25 |
8° + 8° |
|
DC-32 |
46 |
60 |
8 – 32 |
8° + 8° |
|
DC-40 |
50 |
70 |
15 – 40 |
8° + 8° |
|
DC-56 |
68 |
90 |
15– 56 |
8° + 8° |
Note: Exact taper angle and size can be customized as per machine or chuck design.
CONSTRUCTION DETAILS
Material: Spring Steel / Alloy Steel
Heat Treatment: Hardened & tempered
Slots: Multiple precision slits for uniform grip
Finish: ID & OD precision ground
TYPES OF DOUBLE CONE COLLETS
Tool holding double cone collet
Work holding double cone collet
Step type double cone collet
Special profile (custom-made)
APPLICATIONS
CNC Milling Machines
Grinding Machines
Special Purpose Machines (SPM)
Precision drilling & reaming
High-speed tool holding systems
SUPPLY OPTIONS
Metric & Inch sizes
Hardened / Soft (machinable)
Custom taper & bore as per drawing
Bulk & export packing available
Have questions about a specific product? Our team will help you find the right option for your needs — ensuring compatibility, quality, and value.
A Quick Change Rubber Collet is a soft, flexible workholding collet designed for rapid replacement and non-marking grip of delicate, finished, or thin-wall components. It is ideal for automation lines, inspection stations, grinding, polishing, and light machining applications where frequent size changes, speed, and surface protection are essential.
A Friction Collet is a specialized workholding collet that grips components using high-friction contact surfaces rather than relying only on elastic spring force. It is ideal for smooth, hardened, plated, or polished components that tend to slip in standard steel collets, and is widely used in CNC turning, grinding, automation, and mass production applications.
A Multi Bore Collet is a special-purpose workholding collet designed with two or more bores to clamp multiple identical components simultaneously in a single cycle. Commonly used in CNC lathes, SPM machines, transfer lines, and automation systems, it increases productivity, reduces cycle time, and is ideal for high-volume production of small components.
An MT Collet (Morse Taper Collet) is a tool-holding collet with a Morse taper shank used on drilling machines, milling machines, lathes, and radial drills. It securely holds straight-shank tools such as drills, reamers, end mills, and taps, providing good concentricity and rigid support for accurate machining.
An SDC Collet is a single-taper precision tool-holding collet designed to deliver strong gripping force with low runout. It is commonly used in CNC machining centers, drilling and tapping machines, and SPMs where high rigidity, repeatability, and accurate tool holding are required.
A Bearing Collet is a precision workholding collet designed to securely hold bearing components such as inner rings, outer rings, races, and assembled bearings during grinding, turning, inspection, and assembly operations. It provides uniform clamping, high concentricity, and distortion-free holding, ensuring bearing accuracy, performance, and long service life.
An F Series Collet is a heavy-duty workholding collet used on manual lathes, CNC lathes, and capstan or turret lathes. It provides strong gripping force, high rigidity, and reliable accuracy for medium to large diameter components, making it an ideal replacement for jaw chucks to achieve better precision and faster cycle times.
A W-Series Collet is a high-precision, draw-in type workholding collet commonly used on cylindrical grinders, tool and cutter grinding machines, milling fixtures, and inspection setups. It offers excellent concentricity, high rigidity, and repeatable accuracy, making it ideal for precision grinding and finishing operations.
